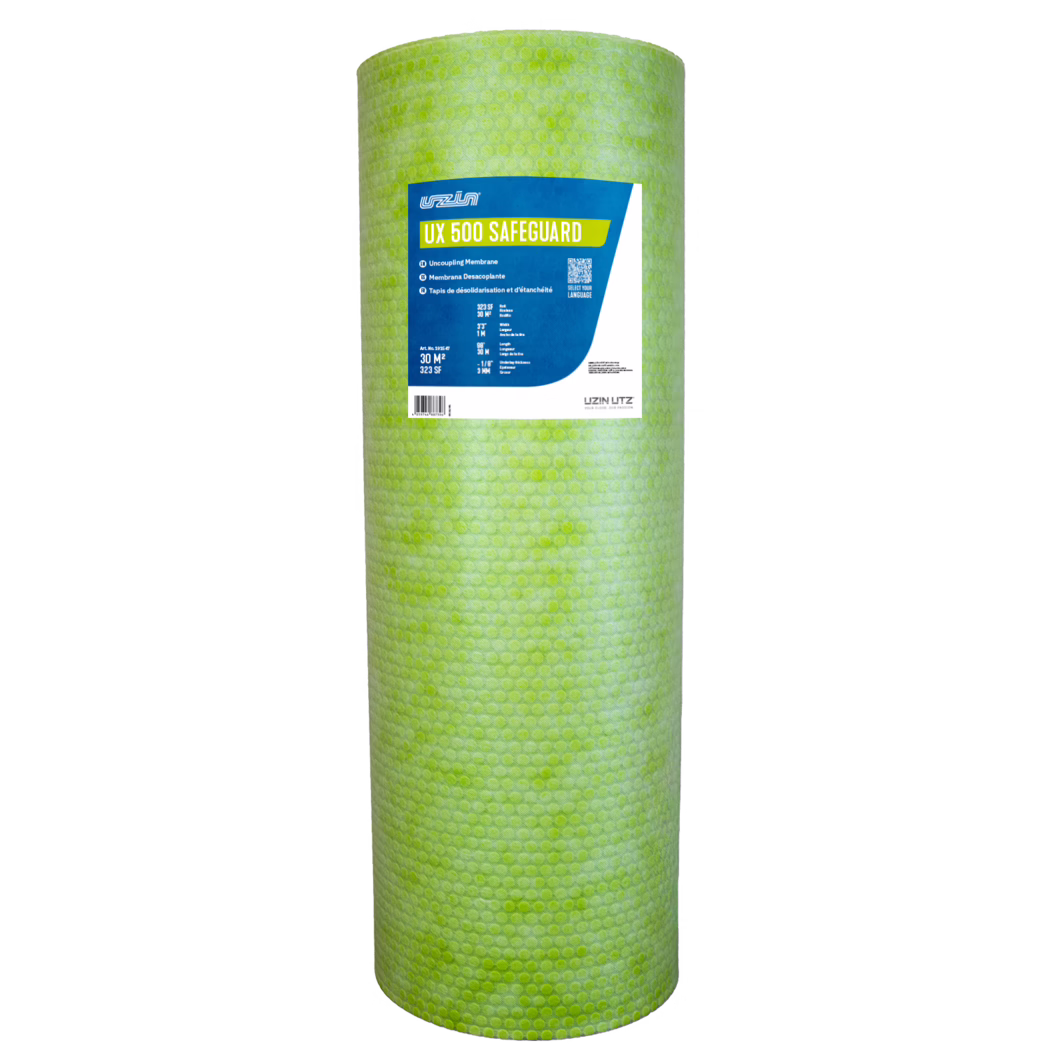

UX 500 SafeGuard Tile and Stone
High-Tech, Fiber-Reinforced Uncoupling Membrane
Applications
- Tile and stone applications in interior wet and dry areas
- Over UZIN priming and surface preparation systems
- Single-layer tongue-and-groove plywood subfloors 3/4” (19 mm) or thicker on joists up to 19.2” (49 cm) O.C., eliminating backerboards*
- Concrete and gypsum substrates to isolate the tile from the floor assembly
- Young concrete substrates once walkable*
- Radiant heat floor applications
- Residential, commercial, and industrial applications
Compatible with UZIN CX 15, 20, 30, 33, and 38 cement-based tile-setting mortars, as well as UZIN TR 400 resin-based setting mortar* - For topical waterproof integrity, UZIN WP Seam Tape bonded with UZIN CX 15, 20, 30, 33, and 38 or UZIN HS 200 is recommended for seams and perimeter details*
- Meets LEED requirements in IEQ credit (4.1) Low Emitting Materials – Adhesives and Sealants (LEED v4)
* See Product Data Sheet Important Notes
Properties
- Installer-Friendly - Extremely lightweight, easty to carry, fit, & cut
- No Memory Effect - Rolls out flat immediately
- High-Tech Surface - Polyethylene core with high-tech fibers on top for superior bond to thin-set
- Fast-Track Installation - Can be installed over young concrete & gypsum with tile install on membrane immediately
- Underlayment Grade - Replaces traditional tile backerboard over single layer plywood or OSB
- High Compressive Strength and Load Displacement - Meets ASTM 627 Extra Heavy
- Waterproof and Vapor Management - Allows vapor to equalize from the underside, but waterproof from the top when seams & perimeter are treated
| Packaging |
39.3” x 98.4’ (1 x 30 m) |
|---|---|
| Storage |
48 months |
| Application temperature |
40 – 90°F (4 – 32°C) |
| Ready for foot traffic |
Tile bond to membrane (approx.): |
| Ready for covering |
Time before tiling |
| Thickness |
1/8” (3 mm) |
| Thermal resistance |
In-service temperature range is -40 – 194°F (-35 – 90°C) |
| Fire reaction |
Will not contribute to flame spread when installed |
| Gewicht |
35 lbs (16 kg) per roll |
